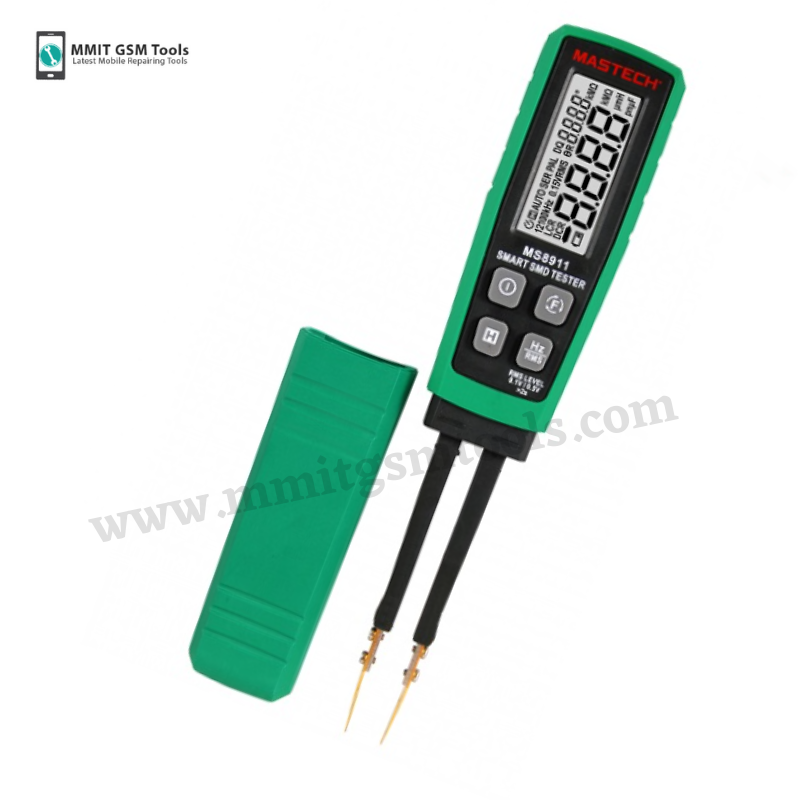

Mastech MS8911 – Smart SMD Tester (R/L/C)

Best Selling LCR Meter

• Display 6000 counts
• Auto & Manual Ranging
• Auto Power Off
• Data Hold
• Low Battery Display
• Auto Scanning
• Test: Inductance, Capacitance, Resistance

Resistance:
– 0.5V RMS:
60Ω 0.01Ω ±(2.0%+10)
600Ω/6kΩ/60kΩ/600kΩ 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ ±(1.0%+5)
6MΩ/20MΩ 0.001MΩ/0.01MΩ ±(2.0%+5)
– 0.1V RMS
60Ω 0.01Ω ±(2.0%+10)
600Ω/6kΩ/60kΩ/600kΩ 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ ±(1.5%+5)
6MΩ/20MΩ 0.001MΩ/0.01MΩ ±(3.0%+5)

Capacitance:
– 0.5V RMS
600pF 0.1pF ±(2.0%+8)
6nF/60nF/600nF 0.001nF/0.01nF/0.1nF ±(1.0%+5)
6μF/60μF 0.001μF/0.01μF ±(2.0%+5)
600μF 0.1μF ±(2.0%+10)
6mF 0.001mF ±(2.0%+5)
– 0.1V RMS
600pF 0.1pF ±(2.0%+5)
6nF/60nF/600nF/6μF
0.001nF/0.01nF/0.1nF/0.001μF ±(1.5%+5)
60μF/600μF/6mF 0.01μF/0.1μF/0.001mF ±(3.0%+5)

Inductance:
– 0.5V RMS
600μH/6000μH 0.1μH/1μH ±(2.0%+5)
60mH/600mH/6H/60H
0.01mH/0.1mH/0.001H/0.01H ±(1.0%+5)
200H 0.1H ±(2.0%+5)
– 0.1V RMS
600μH/6000μH 0.1μH/1μH ±(3.0%+5)
60mH/600mH/6H 0.01mH/0.1mH/0.001H ±(1.5%+5)
60H 0.01H ±(1.0%+5)
200H 0.1H ±(2.0%)

Power Supply : 1x3V CR2450 Battery
Product Size : 186mmx35mmx23.6mm 7.3×1.38×0.93
Product Weight : 90g/0.2lb
Certification : CE /ETL /RoHS
